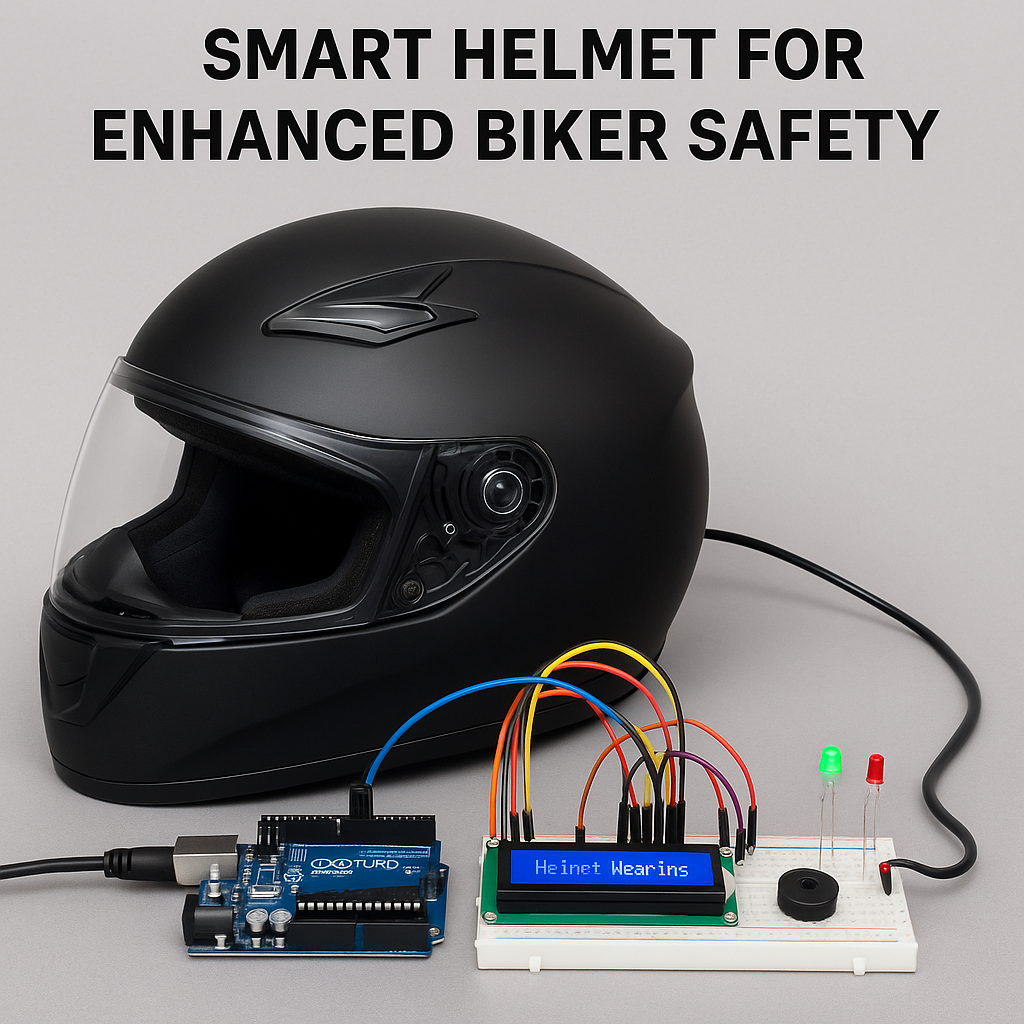

Smart Helmet for Enhanced Biker Safety
The Smart Helmet for Enhanced Biker Safety integrates advanced technology to provide bikers with real-time monitoring and alert systems, enhancing their safety on the road.
Equipped with sensors and communication modules, this helmet can detect environmental conditions, such as temperature and gas levels, and detect falls or accidents.
In case of abnormal conditions or emergencies, it alerts the rider and sends notifications to predefined emergency contacts via SMS and phone calls.
Component List:
Name | Quantity | Component |
---|---|---|
U1 | 1 | Arduino Uno R3 |
U2 | 1 | LCD 16 x 2 |
Rpot2 | 1 | 250 kΩ Potentiometer |
R1 | 1 | 220 Ω Resistor |
GAS2 | 1 | Gas Sensor |
R2 | 1 | 20 kΩ Resistor |
U3 | 1 | Wifi Module (ESP8266) |
R4 R5 R8 R9 R10 R11 | 6 | 1 kΩ Resistor |
R6 R7 | 2 | 220 Ω Resistor |
PIEZO1 | 1 | Piezo |
U4 | 1 | Temperature Sensor [TMP36] |
U5 | 1 | Tilt Sensor 4-pin |
R3 | 1 | Photoresistor |
D1 | 1 | Red LED |
D2 | 1 | Green LED |
Arduino Code:
#include <LiquidCrystal.h>
#include <SoftwareSerial.h>
float t=0;
char data = 0;
String apiKey = "ZY6DICQ136QRGTH1";
SoftwareSerial ser(8,9);
const int rs = 13, en = 12, d4 = 6, d5 = 5, d6 = 4, d7 = 3;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);
float temp = 0;
unsigned long start, finished, elapsed;
int period = 250;
unsigned long time_now = 0;
int const PINO_SGAS = A0;
int belt=A2;
int red=2;
int green=11;
int yellow=1;
int tilt=7;
int buzzer=A4;
int valor;
void setup() {
ser.begin(9600);
Serial.begin(9600);
pinMode(red, OUTPUT);
digitalWrite(red, LOW);
pinMode(green, OUTPUT);
digitalWrite(green, LOW);
pinMode(yellow, OUTPUT);
digitalWrite(yellow, LOW);
pinMode(buzzer, OUTPUT);
pinMode(belt, INPUT);
lcd.begin(16, 2);
ser.println("AT");
delay(1000);
ser.println("AT+GMR");
delay(1000);
ser.println("AT+CWMODE=3");
delay(1000);
ser.println("AT+RST");
delay(5000);
ser.println("AT+CIPMUX=1");
delay(1000);
String cmd="AT+CWJAP=\"Thiha Htun\",\"12345678\"";
ser.println(cmd);
delay(1000);
ser.println("AT+CIFSR");
delay(1000);
}
void loop() {
digitalWrite(green, LOW);
digitalWrite(red, LOW);
lcd.clear();
if(analogRead(belt)>=500){
int start=millis()/1000;
digitalWrite(green,HIGH);
lcd.print (" Helmet Wearing");
static unsigned long sensortStamp = 0;
valor = analogRead(PINO_SGAS);
t=valor;
if(valor>800){
gas();
}
if(millis() - sensortStamp > 1000){
sensortStamp = millis();
int reading = analogRead(A1);
Serial.print(F("Real Time Temp: "));
float voltage = reading * 5.0;
voltage /= 1024.0;
float temperatureC = (voltage - 0.5) * 100 ;
Serial.print(temperatureC); Serial.print(" degrees C ");
lcd.setCursor(0,1);
for (int positionCounter = 0; positionCounter < 13; positionCounter++) { lcd.scrollDisplayLeft(); delay(300); } lcd.setCursor(0,1); lcd.print(temperatureC); lcd.print(" "); lcd.print("C"); lcd.print(" "); float temperatureF = (temperatureC * 9.0 / 5.0) + 32.0; lcd.setCursor(9, 1); lcd.print(temperatureF); lcd.print(" "); lcd.print("F"); lcd.print(" "); } if(digitalRead(tilt)==HIGH){ lcd.clear(); lcd.print("Fall Detect"); lcd.setCursor(0,1); lcd.print("Wait 5 seconds"); start=millis(); delay(5000); finished=millis(); Serial.println("Finished"); elapsed=finished-start; Serial.print(elapsed); Serial.println(" milliseconds elapsed"); Serial.println(); delay(500); lcd.clear(); tone(buzzer, 440, 250); lcd.print("Sending ALERT"); lcd.setCursor(0,1); lcd.print("SMS & Emerg call"); delay(3000); lcd.clear(); } if(temperatureC > 38){
time_now = millis();
digitalWrite(green, LOW);
digitalWrite(yellow, LOW);
digitalWrite(red, HIGH);
lcd.clear();
lcd.print("Alert Abnormal");
lcd.setCursor(0,1);
lcd.print("Body Temperature");
while(millis() < time_now + period){
}
}
}
}
void gas(){
if(valor>80){
tone(buzzer, 440, 250);
delay(2000);
digitalWrite(red, HIGH);
lcd.clear();
lcd.print("Harmful Gas");
lcd.setCursor(0,1);
lcd.print("condition");
delay(1000);
lcd.clear();
Serial.println(valor);
}
}
The helmet continuously monitors environmental conditions and the rider’s status. It detects helmet wearing, measures temperature, checks gas levels, and monitors for falls.
If abnormal conditions are detected, such as high temperature or harmful gas levels, or if a fall occurs, the helmet triggers alerts.
These alerts include visual cues on the display, audible warnings via the buzzer, and communication with emergency contacts through SMS and phone calls using the ESP8266 module.
This comprehensive system ensures that bikers are promptly notified of potential dangers, allowing them to take appropriate action and stay safe on the road.
